原理：

锅体与锅盖由法兰密封联接。锅体下部有放料孔，锅内有搅拌器，锅盖上开有进料、搅拌、观察、测温、测压、蒸汽引出分馏、安全放空等工艺管孔。锅盖上部焊接支架上装置减速机与电机，由传动轴驱动锅内搅拌器，轴封装置在锅盖顶部。加热夹套上开有进、排油（汽）、测温、放空、电热棒等接管孔。由于用户因生产工艺、操作条件不尽相同，对锅盖工艺开孔，搅拌型式（有浆式、锚式、框式、螺旋式等），支承型式（悬挂式或支座式）以及填料密封装置等不同要求，可与本公司联系，另行设计，特别配制。

Introduction:

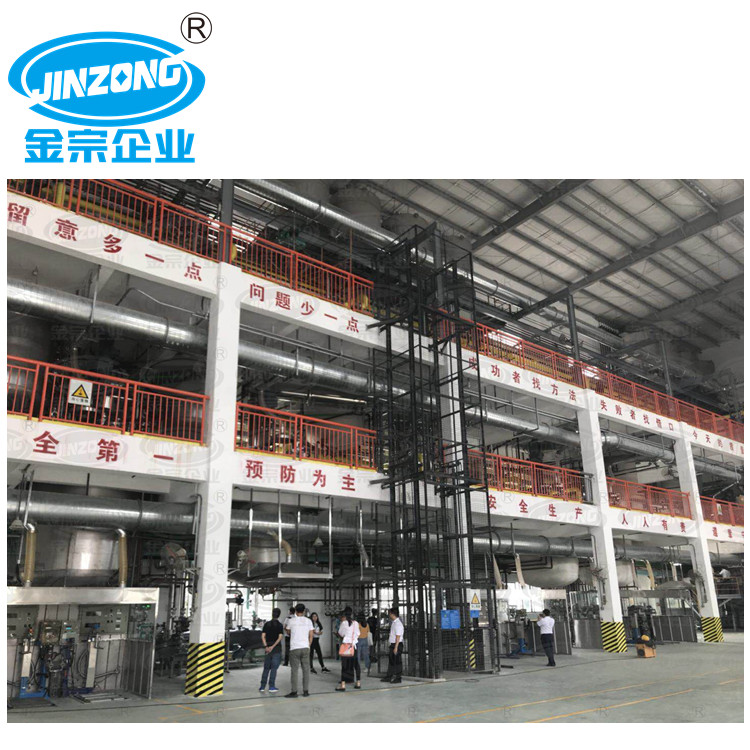

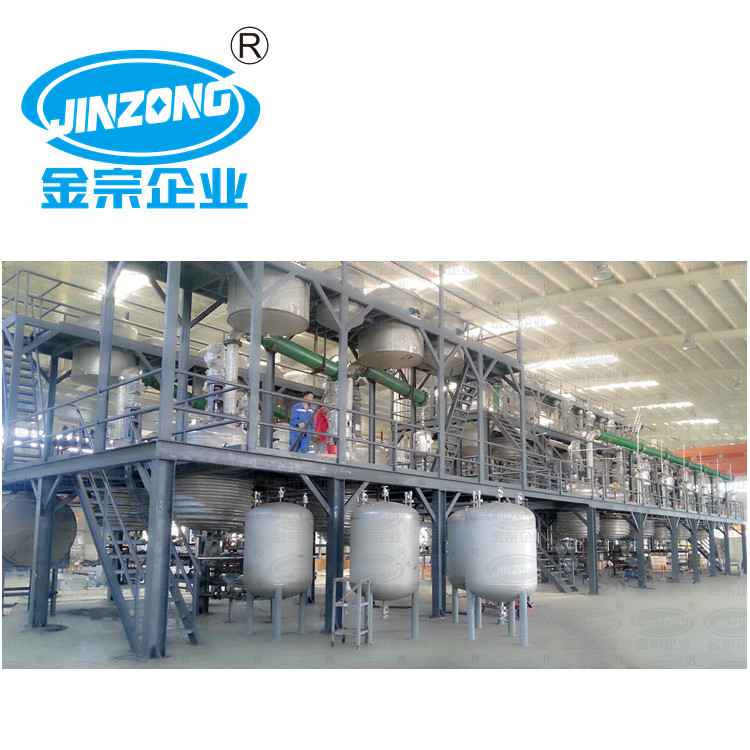

Resin production equipment is a combination of reaction kettles and ancillary equipment selected according to the process requirements. We have accumulated 20 years of resin equipment production experience and have strong production and design capabilities, which can provide users with alkyd resins and polyester resins. Unsaturated polyester resin. Epoxy resin. Acrylic resin,(PU) amino resin, curing agent, hot melt glue, binder, Silicon oil, light oil and other projects of the engineering design, setting alternative guidance, equipment processing, equipment installation and other key engineering. Relying on the Internet of Things system, real-time monitoring of the operation of each device, ensure safe and efficient production, daily form of reports, factory operations, at a glance, really realize the factory intelligent, digital.

Features:

Due to the fact that the user's production process and operating conditions are not the same, the jacket heating type is divided into electric heating, Steam heating, and heat conduction oil cycling heating. The shaft sealing device is divided into packing sealing and mechanical sealing. The stirring type has anchor type, slurry type, worm wheel type, propulsion type or frame type. The number of openings, specifications or other requirements can be made according to user requirements.

Principle:

The pan and lid are sealed by flange. The lower part of the pot has a feeding hole, and there is a blender in the pot. The boiler cover has process tube holes such as feed, stirring, observation, temperature measurement, pressure measurement, Steam extraction fractionation, and safe emptying. The upper part of the lid is fitted with a speed reducer and an electric motor. The drive shaft drives the pot mixer, and the shaft seal device is on the top of the lid. Heating CLIP sleeve with open into, discharge oil(steam), temperature measurement, air, electric heat rod and other takeover holes. Due to the fact that the user has different production processes and operating conditions, the pot cover process is perforated and the stirring type(pulp type, anchor type, frame type, spiral type, etc.) is used. Support type(suspension or support type) and packing sealing device and other different requirements, can be contacted, separately designed, specially prepared.
